グラフィック標準品
◆クローバー社 （グラフィック表示：文字・グラフ・画像など複雑なデザインを表示するのに適しております)
http://www.cloverdisplay.com/
| ドット構成 | シリーズ品名 | 外形寸法 mm | 表示エリア | Dot Pitch | interface |
| 84×24 | CV8424A | 55.00×30.00 | 47.70×16.70 | 0.54×0.54 | 4-bit |
| 98×64 | CV9018A | 37.00×33.00 | 34.00×22.00 | 0.30×0.30 | Serial |
| 100×65 | CV9021A | 32.50×37.00 | 28.00×26.70 | 0.26×0.38 | Serial |
| 120×24 | CV12024A | 84.00×44.00 | 60.50×17.70 | 0.47×0.58 | 4-bit |
| 120×32 | CV12032A | 84.00×44.00 | 62.50×23.50 | 0.47×0.58 | 8-bit |
| 120×32 | CV12032C | 84.00×44.00 | 62.50×23.50 | 0.47×0.58 | 4-bit / 8-bit |
| 128×16 | CV12816A | 106.00×34.00 | 70.00×12.00 | 0.50×0.53 | 8-bit |
| 128×32 | CG12832A | 84.30×36.30 | 76.00×22.20 | 0.57×0.60 | I2C |
| 128×64 | CV9020B | 34.40×31.60 | 30.40×20.90 | 0.22×0.30 | 8-bit |
| 128×64 | CG12864C | 34.40×32.60 | 30.40×20.90 | 0.22×0.30 | Serial |
| 128×64 | CG12864A | 44.30×30.14 | 37.04×20.24 | 0.27×0.27 | Parallel / Serial |
| 128×64 | CV9007D | 61.00×38.50 | 52.00×26.50 | 0.38×0.38 | Serial |
| 128×64 | CV9007E | 64.00×47.35 | 59.00×30.35 | 0.40×0.40 | 8-bit |
| 128×64 | CV12864B | 78.00×70.00 | 62.00×44.00 | 0.44×0.60 | 8-bit |
| 128×64 | CV12864C | 78.00×70.00 | 62.00×44.00 | 0.44×0.60 | 8-bit |
| 128×64 | CG12864D | 78.40×53.00 | 70.60×38.60 | 0.52×0.52 | Serial |
| 128×64 | CG12864B | 78.40×53.00 | 70.60×38.60 | 0.52×0.52 | Parallel / Serial |
| 128×128 | CG128128A | 75.40×83.40 | 69.00×69.00 | 0.47×0.47 | 8-bit / Serial I2C |
| 132×128 | CV9132A | 55.00×56.00 | 50.00×42.00 | 0.30×0.30 | Serial |
| 144×12 | CV14412A | 100.00×30.00 | 92.00×11.80 | 0.63×0.82 | 4-bit |
| 160×160 | CG160160B | 53.00×57.00 | 49.00×46.00 | 0.27×0.27 | Parallel / Serial |
| 160×160 | CV160160A | 89.20×85.00 | 62.00×62.00 | 0.38×0.38 | 4-bit |
| 160×160 | CG160160D | 75.40×83.40 | 69.00×69.00 | 0.37×0.37 | Parallel / Serial I2C |
| 240×64 | CG24064B | 108.00×43.22 | 102.40×30.22 | 0.41×0.41 | Parallel / Serial |
| 240×64 | CV24064B | 180.00×65.00 | 132.00×39.00 | 0.53×0.53 | 8-bit |
| 240×128 | CG240128A | 73.00×45.80 | 61.50×34.50 | 0.24×0.24 | Parallel 3line or 4line SPI |
| 240×128 | CG240128C | 100.30×57.80 | 79.00×43.50 | 0.30×0.30 | Parallel 3line or 4line SPI |
| 240×128 | CV240128A | 144.00×104.00 | 114.00×64.00 | 0.45×0.45 | 8-bit |
| 240×160 | CV240160B | 77.00×54.20 | 61.60×42.50 | 0.24×0.24 | 4-bit |
| 240×160 | CV240160C | 77.00×54.20 | 61.60×42.50 | 0.24×0.24 | 4-bit / 8-bit |
| 240×160 | CG240160D | 73.00×60.30 | 65.90×46.00 | 0.24×0.24 | Parallel / Serial |
| 240×160 | CG240160C | 96.40×78.20 | 86.00×62.80 | 0.32×0.36 | Parallel / Serial |

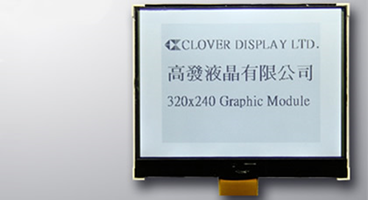

| 320×240 | CV320240D | 100.00×77.70 | 81.38×62.18 | 0.24×0.24 | 4-bit |
| 320×240 | CV320240F | 97.70×75.00 | 81.38×62.18 | 0.24×0.24 | 4-bit / 8-bit |
| 320×240 | CG320240B | 96.40×78.20 | 86.00×62.80 | 0.22×0.22 | 4 Line Serial |
| 640×200 | CV640200A | 256.29×128.02 | 232.16×106.17 | 0.35×0.49 | 4-bit |
| 640×480 | CV640480A | 256.30×174.00 | 198.00×150.00 | 0.30×0.30 | 4-bit |
◆ゼトラ社 （グラフィック表示：文字・グラフ・画像など複雑なデザインを表示するのに適しております)
http://www.zettlercn.com/products/displays.html
| ドット構成 | シリーズ品名 | 外形寸法 mm | 表示エリア | Dot Pitch | interface |
| 100 x 32 | AGM1032A | 65.00 x 28.4 | 47.00 x 18.40 | 0.44 x 0.48 | |
| 122 x 32 | AGM1232G | 84.00 x 44.00 | 60.0 x 18.00 | 0.44 x 0.49 | |
| 122 x 32 | AGM1232E | 65.40 x 27.40 | 59.0 x 18.50 | 0.44 x 0.49 | |
| 128 x 64 | AGM1264FI | 93.00 x 62.90 | 72.00 x 40.00 | 0.52 x 0.52 | |
| 128 x 64 | AGM1264O | 54.00 x 54.50 | 44.5 x 29.50 | 0.33 x 0.38 | |
| 128 x 64 | AGM1264K | 78.00 x 70.00 | 62.00 x 44.00 | 0.44 x 0.60 | |
| 160 x 32 | AGM16032A | 85.00 x 25.90 | 64.50 x 16.40 | 0.37 x 0.37 | |
| 192 x 64 | AGM1964D | 120.00 x 62.00 | 104.0 x 39.00 | 0.508 x 0.508 | |
| 240 x 64 | AGM2464B | 180.00 x 65.00 | 133.0 x 39.00 | 0.53 x 0.53 | |
| 240 x 128 | AGM2412A | 144.00 x 104.00 | 114.0 x 64.00 | 0.45 x 0.45 | |
| 240 x 128 | ATM2412BA | 144.00 x 104.00 | 113.5 x 64.00 | 0.462 x 0.462 | |
| 240 x 128 | ATM2412BG | 135.00 x 79.00 | 113.5 x 64.00 | 0.462 x 0.462 | |
| 320 x 240 | ATM3224H | 140.00 x 104.00 | 114.9 x 86.670 | 0.3258 x 0.3258 |
◆標準品にご希望の仕様が無い時はカスタム対応致します。
