TFT液晶

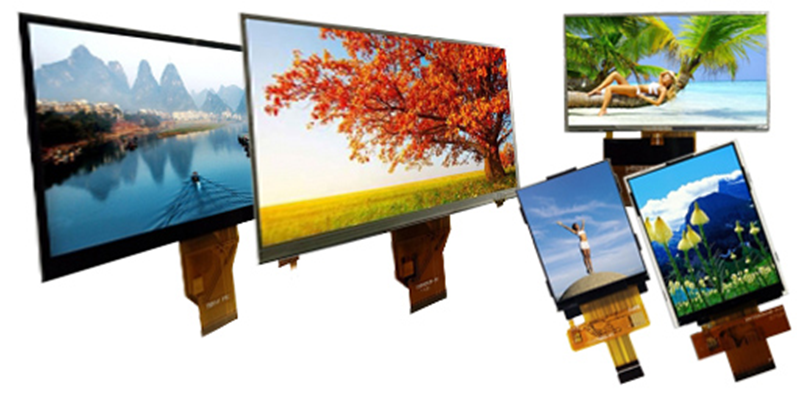

◆ゼトラ社 TFTカラー液晶（★選定前に供給状況を必ずご確認下さい。 ☆詳細仕様はご要求下さい。）
http://www.zettlercn.com/products/displays.html
| サイズ | シリーズ品名 | ドット構成 | 外形寸法 | 面輝度 | interface | タッチ パネル |
| 1.77” | ATM0177B5 | 128×160 | 34.7×46.7 | 240 cd/m2 | RGB 16bit | ‐ |
| 1.77” | ATM0177B3A | 128×160 | 34.7×46.7 | 450 cd/m2 | MCU(SPI) | ‐ |
| 1.77” | ATM0177B3A-T | 128×160 | 34.7×46.7 | 360 cd/m2 | MCU(SPI) | 抵抗膜 |
| 2.4” | ATM0240B25 | 240×320 | 42.72×60.26 | 200 cd/m2 | MCU-16bit | ‐ |
| 2.8” | ATM0280B23B | 240×320 | 50.0×69.2 | 120 cd/m2 | 16bit Parallel 8080 |
‐ |
| 3.5” | ATM0350D19-T | 320×240 | 76.9×63.9 | 500 cd/m2 | RGB 24bit | 抵抗膜 |
| 3.5” | ATM0350D2 | 320×240 | 76.9×63.9 | 400 cd/m2 | RGB 24bit | ‐ |
| 3.5“ | ATM0350D19 | 320×240 | 76.9×63.9 | 625 cd/m2 | RGB 24bit | ‐ |
| 3.5“ | ATM0350D19A | 320×240 | 76.9×63.9 | 500 cd/m2 | RGB 24bit | ‐ |
| 3.5“ | ATM0350D2-T | 320×240 | 76.9×63.9 | 320 cd/m2 | RGB 24bit | 抵抗膜 |
| 3.5“ | ATM0350D18A | 320×240 | 76.9×63.9 | 320 cd/m2 | RGB | ‐ |
| 3.5“ | ATM0350D18 | 320×240 | 76.9×63.9 | 400 cd/m2 | RGB | ‐ |
| 3.5“ | ATM0350D19A-T | 320×240 | 77.0×64.0 | 400 cd/m2 | RGB 24bit | 抵抗膜 |
| 3.5” | ATM0350B39 | 320×480 | 83.15×55.04 | 280 cd/m2 | 18bit Parallel 8080 |
‐ |
| 4.3” | ATM0430D12-CT | 480×272 | 105.5×67.2 | 420 cd/m2 | RGB 24bit | 静電 容量 |
| 4.3” | ATM0430D12-T | 480×272 | 105.5×67.2 | 400 cd/m2 | RGB 24bit | 抵抗膜 |
| 4.3” | ATM0430D12B | 480×272 | 105.5×67.2 | 800 cd/m2 | RGB 24bit | ‐ |
| 4.3” | ATM0430D12B-CT | 480×272 | 105.5×67.2 | 720 cd/m2 | RGB 24bit | 静電 容量 |
| 4.3” | ATM0430D12B-T | 480×272 | 105.5×67.2 | 700 cd/m2 | RGB 24bit | 抵抗膜 |
| 4.3” | ATM0430D12F | 480×272 | 105.5×67.2 | 400 cd/m2 | RGB 24bit | ‐ |
| 4.3” | ATM0430D12F-T | 480×272 | 105.5×67.2 | 320 cd/m2 | RGB 24bit | 抵抗膜 |
| 4.3” | ATM0430D12G-T | 480×272 | 105.5×67.2 | 510 cd/m2 | RGB 24bit | 抵抗膜 |
| 4.3” | ATM0430D12M | 480×272 | 105.5×67.2 | 1300 cd/m2 | RGB 24bit | ‐ |
| 4.3” | ATM0430D12G | 480×272 | 105.5×67.2 | 640 cd/m2 | RGB 24bit | ‐ |
| 4.3” | ATM0430D12M-CT | 480×272 | 105.5×67.2 | 1100 cd/m2 | RGB 24bit | 静電 容量 |
| 4.3” | ATM0430D16A | 480×272 | 105.5×67.2 | 240 cd/m2 | RGB 24bit | ‐ |
| 4.3” | ATM0430D16-CT | 480×272 | 105.5×67.2 | 250 cd/m2 | RGB 24bit | 静電 容量 |
| 4.3” | ATM0430D16-T | 480×272 | 105.5×67.2 | 250 cd/m2 | RGB 24bit | 抵抗膜 |
| 4.3” | ATM0430D16 | 480×272 | 105.5×67.2 | 300 cd/m2 | RGB 24bit | ‐ |
| 4.3” | ATM0430D12M-T | 480×272 | 105.5×67.2 | 1000 cd/m2 | RGB 24bit | 抵抗膜 |
| 4.3” | ATM0430D12 | 480×272 | 105.5×67.2 | 500 cd/m2 | RGB 24bit | ‐ |
| 4.3” | ATM0430D12S | 480×272 | 105.5×67.2 | 1000 cd/m2 | RGB 24bit | ‐ |
| 4.3” | ATM0430D35 | 480×272 | 105.5×67.2 | 500 cd/m2 | RGB 24bit | ‐ |
| 4.3” | ATM0430D35-CT | 480×272 | 105.5×67.2 | 420 cd/m2 | RGB 24bit | 静電 容量 |
| 4.3” | ATM0430D35B | 480×272 | 105.5×67.2 | 800 cd/m2 | RGB 24bit | ‐ |
| 4.3” | ATM0430D35B-T | 480×272 | 105.5×67.2 | 700 cd/m2 | RGB 24bit | 抵抗膜 |
| 4.3” | ATM0430D35D | 480×272 | 105.5×67.2 | 400 cd/m2 | RGB 24bit | ‐ |
| 4.3” | ATM0430D35M | 480×272 | 105.5×67.2 | 1300 cd/m2 | RGB 24bit | ‐ |
| 4.3” | ATM0430D35M-T | 480×272 | 105.5×67.2 | 1000 cd/m2 | RGB 24bit | 抵抗膜 |
| 4.3” | ATM0430D35M-CT | 480×272 | 105.5×67.2 | 1100 cd/m2 | RGB 24bit | 静電 容量 |
| 4.3” | ATM0430D35MF-T | 480×272 | 105.5×67.2 | 800 cd/m2 | RGB 24bit | 抵抗膜 |
| 4.3” | ATM0430D35-T | 480×272 | 105.5×67.2 | 400 cd/m2 | RGB 24bit | 抵抗膜 |
| 4.3” | ATM0430D36 | 480×272 | 105.5×67.2 | 300 cd/m2 | RGB 24bit | ‐ |
| 4.3” | ATM0430D36-CT | 480×272 | 105.5×67.2 | 250 cd/m2 | RGB 24bit | 静電 容量 |
| 5” | ATM0500D21-T | 480×272 | 120.7×75.8 | 280 cd/m2 | RGB 24bit | 抵抗膜 |
| 5” | ATM0500D21 | 480×272 | 120.7×75.8 | 350 cd/m2 | RGB 24bit | ‐ |
| 5” | ATM0500L19B | 800×480 | 120.7×75.8 | 500 cd/m2 | LVDS | ‐ |
| 5” | ATM0500D19-T | 800×480 | 120.7×75.8 | 280 cd/m2 | RGB 24bit | 抵抗膜 |
| 5” | ATM0500D19 | 800×480 | 120.7×75.8 | 350 cd/m2 | RGB 24bit | ‐ |
| 5” | ATM0500D19E | 800×480 | 120.7×75.8 | 520 cd/m2 | RGB 24bit | ‐ |
| 5” | ATM0500D19E-CT1 | 800×480 | 120.7×75.8 | 450 cd/m2 | RGB 24bit | 静電 容量 |
| 7” | ATM0700D38B | 800×480 | 164.9×100.0 | 700 cd/m2 | RGB 24bit | ‐ |
| 7” | ATM0700L47-CT5 | 1024×600 | 164.9×100.0 | 400 cd/m2 | LVDS | 静電 容量 |
| 7” | ATM0700D8A | 800×480 | 164.9×100.0 | 250 cd/m2 | RGB 24bit | ‐ |
| 7” | ATM0700L6J | 800×480 | 164.9×100.0 | 1050 cd/m2 | LVDS | ‐ |
| 7” | ATM0700D6J-T | 800×480 | 164.9×100.0 | 800 cd/m2 | RGB 24bit | 抵抗膜 |
| 7” | ATM0700L6J-T | 800×480 | 164.9×100.0 | 850 cd/m2 | LVDS | 抵抗膜 |
| 7” | ATM0700L6J-CT | 800×480 | 164.9×100.0 | 850 cd/m2 | LVDS | 静電 容量 |
| 7” | ATM0700L6B-T | 800×480 | 164.9×100.0 | 400 cd/m2 | LVDS | 抵抗膜 |
| 7” | ATM0700L6B-CT | 800×480 | 164.9×100.0 | 430 cd/m2 | LVDS | 静電 容量 |
| 7” | ATM0700L6B | 800×480 | 164.9×100.0 | 500 cd/m2 | LVDS | ‐ |
| 7” | ATM0700D12B-T | 800×480 | 164.9×100.0 | 400 cd/m2 | RGB 24bit | 抵抗膜 |
| 7” | ATM0700D6J-CT | 800×480 | 164.9×100.0 | 850 cd/m2 | RGB 24bit | 静電 容量 |
| 7” | ATM0700D6J | 800×480 | 164.9×100.0 | 1000 cd/m2 | RGB 24bit | ‐ |
| 7” | ATM0700D6B-T | 800×480 | 164.9×100.0 | 400 cd/m2 | RGB 24bit | 抵抗膜 |
| 7” | ATM0700D6B-CT | 800×480 | 164.9×100.0 | 430 cd/m2 | RGB 24bit | 静電 容量 |
| 7” | ATM0700D6B | 800×480 | 164.9×100.0 | 500 cd/m2 | RGB 24bit | ‐ |
| 8” | ATM0800D9-T | 800×600 | 183.0×141.0 | 280 cd/m2 | RGB 24bit | 抵抗膜 |
| 8” | ATM0800D9 | 800×600 | 183.0×141.0 | 350 cd/m2 | RGB 24bit | ‐ |
| 9” | ATM0900D6 | 800×480 | 211.1×126.5 | 250 cd/m2 | RGB | ‐ |
| 10.1” | ATM1010L21-CT2 | 1024×600 | 235.00×143.00 | 350 cd/m2 | LVDS | 静電 容量 |
| 10.1” | ATM1010L21 | 1024×600 | 235.00×143.00 | 410 cd/m2 | LVDS | ‐ |
| 10.1” | ATM1010L19 | 1280×800 | 229.34x 148.98 | 200 cd/m2 | LVDS | ‐ |
| 10.1” | ATM1010L18 | 1024×600 | 235.0×143.0 | 360 cd/m2 | LVDS | ‐ |
| 10.4” | ATM1040D3-CT | 800×600 | 228.4×175.4 | 160 cd/m2 | RGB 24bit | 静電容量 |
| 10.4” | ATM1040L3B | 800×600 | 228.4×175.4 | 250 cd/m2 | LVDS | ‐ |
| 10.4” | ATM1040L3B-T1 | 800×600 | 228.4×175.4 | 200 cd/m2 | LVDS | 抵抗膜 |
| 10.4” | ATM1040D3-T | 800×600 | 228.4×175.4 | 250 cd/m2 | LVDS | 抵抗膜 |
| 10.4” | ATM1040D3 | 800×600 | 228.4×175.4 | 200 cd/m2 | RGB 24bit | ‐ |
